- The STABILA LAR-350 is an easy-to-use rotation laser for horizontal and vertical levelling, including obtaining plumb lines. Fully automatic motor-driven rotation laser for horizontal and vertical applications as well as manual inclination in two axes. Innovative MOTION CONTROL quick, reliable and convenient laser operation by rotating the remote control.
- DUAL SLOPE inclination function controlled inclination setting of up to 5 degrees on two axes. SECTION MODE working area which can be limited as required in rotation mode. The laser beam is only emitted in a defined area.
- LED ASSIST system for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted. MANUAL ALIGNMENT function pivoting an axis in vertical operation.
- Patented STABILA PROTECTOR system perfect protection, even when the laser is dropped from a tripod at a height of up to 5.9 feet. Waterproof and dustproof in accordance with protection class IP 65. Large working area with REC 300 Digital set receiver, up to 2624.67 feet in diameter.

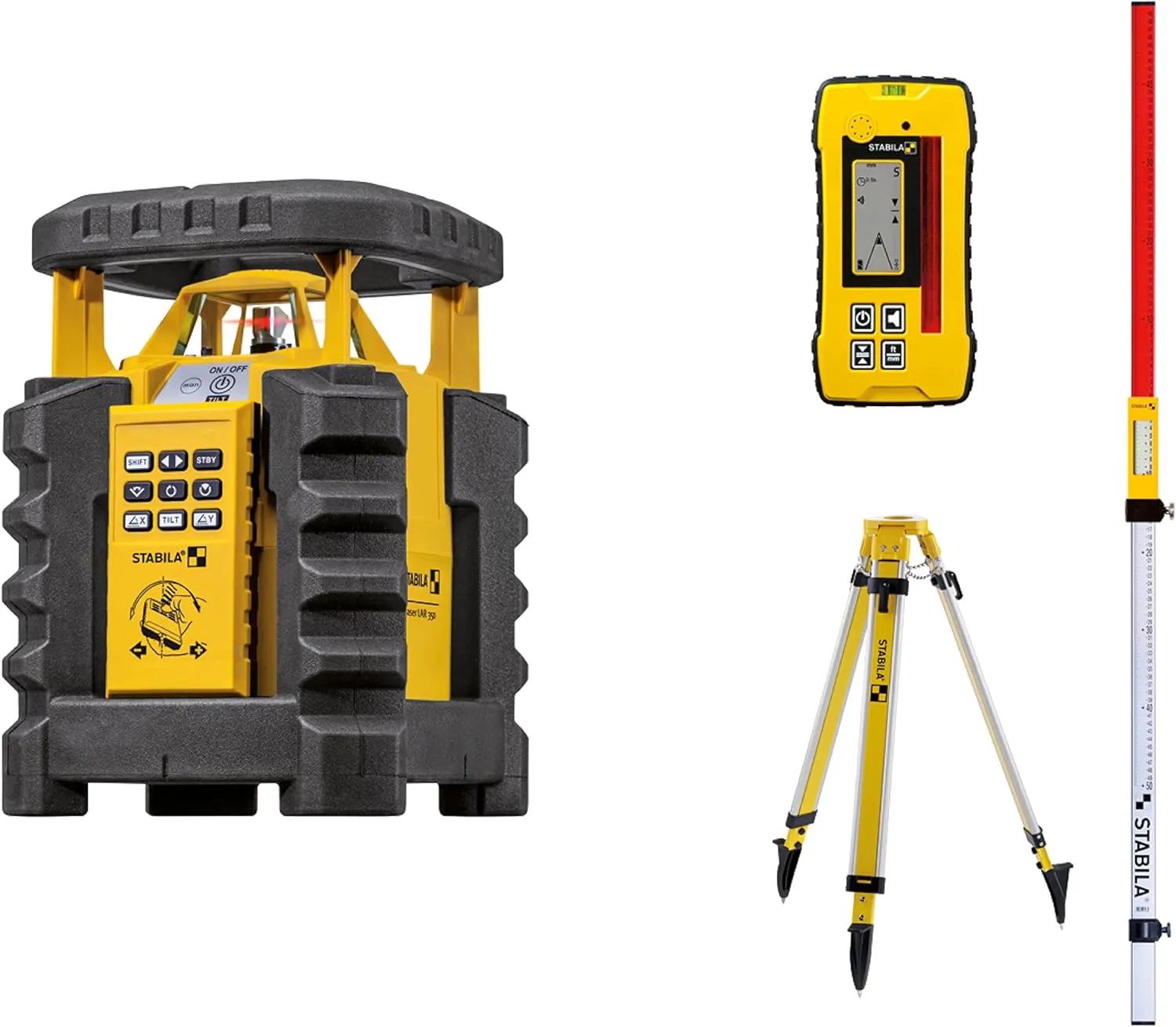

- Includes: Stabila LAR 350 rotation laser - Made In Germany, Stabila REC 300 Digital receiver - Made In Germany, Stabila RC-LAR350 remote control - Made In Germany, 90 degree angle rail, laser goggles, target plate, carrying case, 2 x D 1.5 V batteries, 4 x AA 1.5 V batteries. Stabila 07498 Fixed Head Tripod 39" - 65.5". Stabila 07469 Aluminium two piece elevation rod
World first! The revolutionary MOTION CONTROL makes every measuring task easier, quicker and more effective. You can control the LAR 350 in no time at all with the remote control. The built-in sensor detects your hand movements and transmits them to the rotation laser. Discover a multitude of ground-breaking technologies and functions. Thanks to the integrated protection systems, nothing gets in the way of this laser – not even falls, rain or dust. A strong measurement package for professionals with responsibility. Typically STABILA – because precision is the crucial factor. Application examples All General Groundworks for Residential & larger scale, Commercial applications Site preparation, footings, foundations & slab-laying. Aligning and positioning steel beams in industrial building construction. Earth moving, Road construction, Trenching and general Landscaping. General construction levelling and alignment . In civil engineering and pipeline construction installing pipelines. Outdoor elevation transfer work such as septic tank installation Slope capability for setting out driveways, ramps, and drainage lines etc. Interior setting-out & alignment applications. Machine installation. Technical data Accuracy: /-3mm @ 98.4 feet (30 metres) Laser class: 2 Laser output: 635nM, 1mW Self levelling range: /-5 degrees (instrument will set level on surfaces up to 5 degrees out of level.) Rotating speed: 0 - 600rpm Out of level shut off Detector range: 2624.67 feet diameter (800m diameter) Visible range: 65.6 feet (20m) Tripod thread: 5/8" - 1 Battery life: 80 hours continuous / 2 x type D alkalines (optional rechargeables) Operating temperature range: -10 to 60 degrees C
