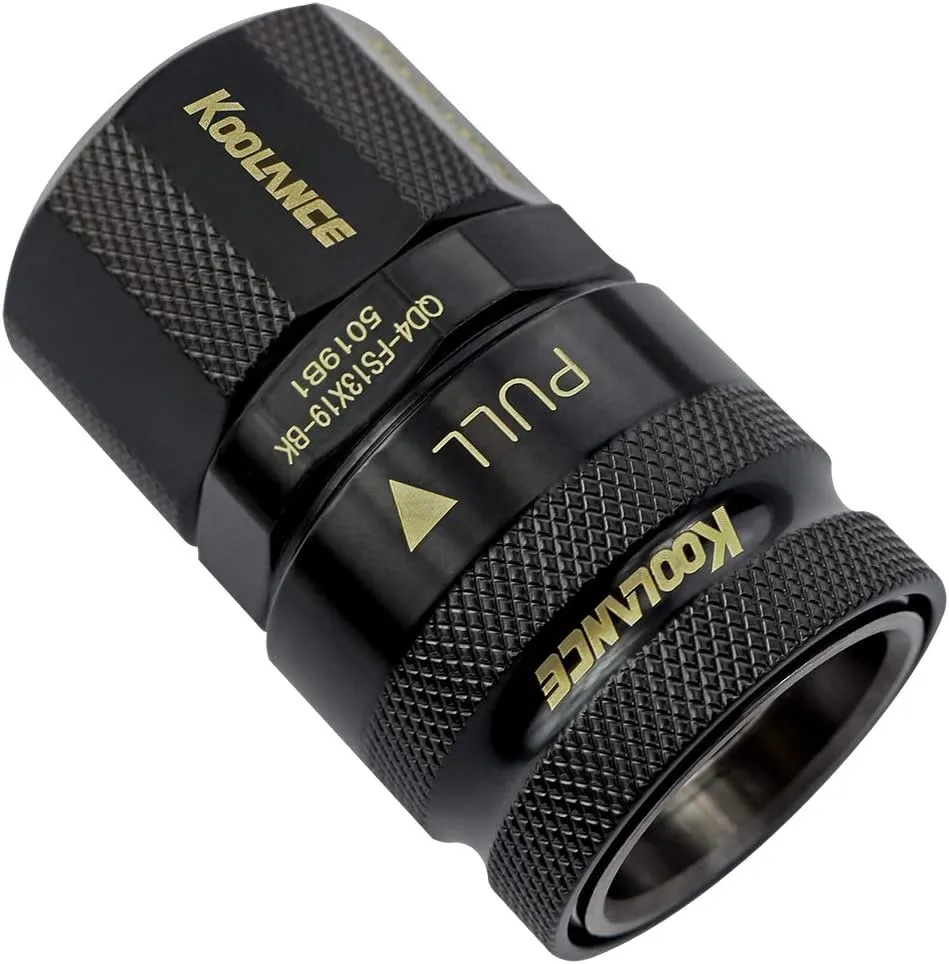

- Koolance patented quick disconnect no-spill coupling with automatic shutoff.
- 13mm (1/2in) ID, 19mm (3/4in) OD female straight connection with compression fitting.
- It will only fit a Koolance QD4 male quick disconnect.
- After pulling the ring on the female QDC side, the quick-disconnect fittings will separate.
- Liquid on both sides will be automatically obstructed with approximately 0.2ml freed.
Koolance patented quick disconnect no-spill coupling with automatic shutoff. 13mm (1/2in) ID, 19mm (3/4in) OD female straight connection with compression fitting. It will only fit a Koolance QD4 male quick disconnect.
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi).
Additional Specifications
• Materials: Brass, Stainless Steel, EPDM
• Max Temp. Operating Tolerance: 100°C (212°F)
• Max Pressure Tolerance @ 25°C: 8kgf/cm2 (113.8psi)
